Warbud - Pavilions

General informations

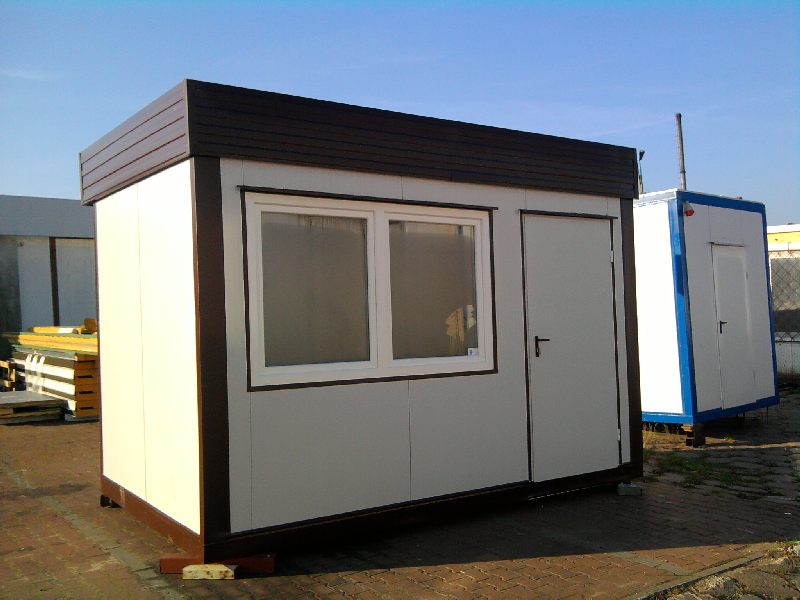

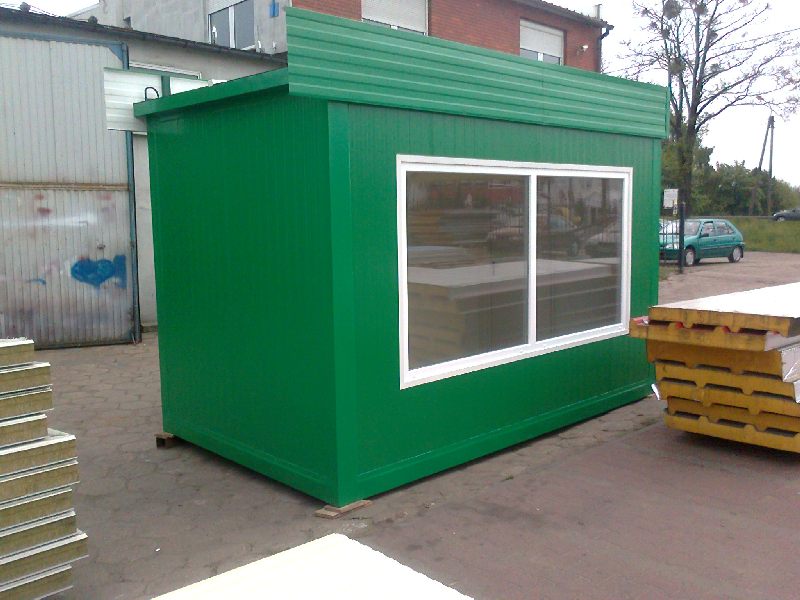

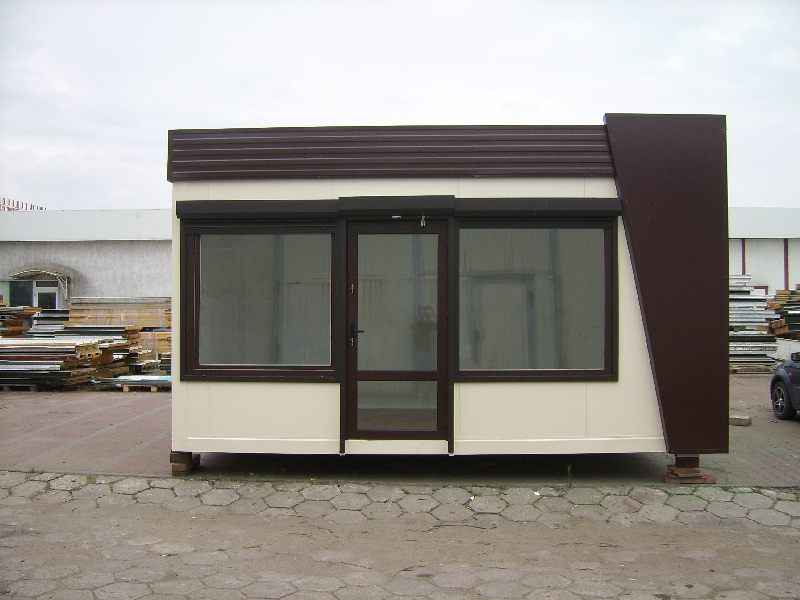

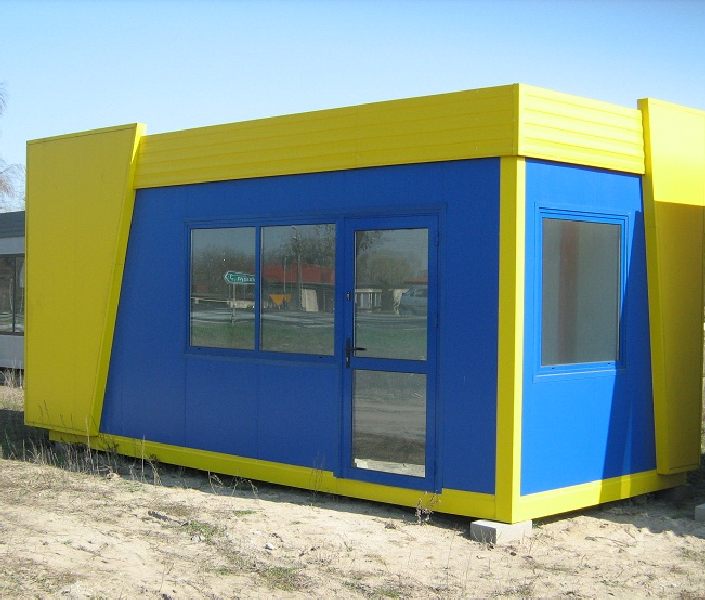

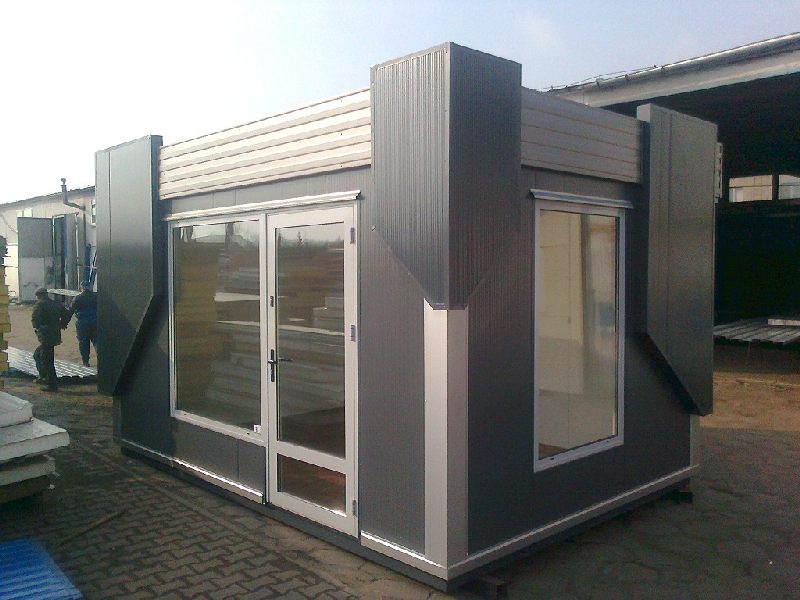

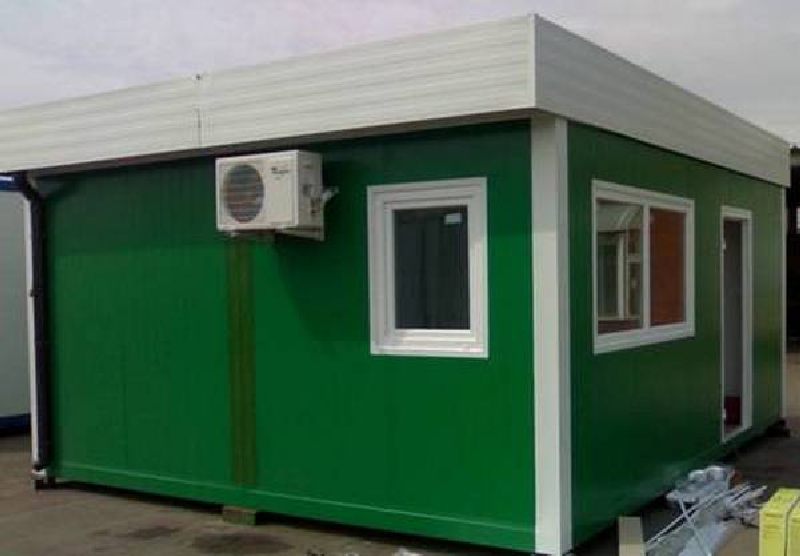

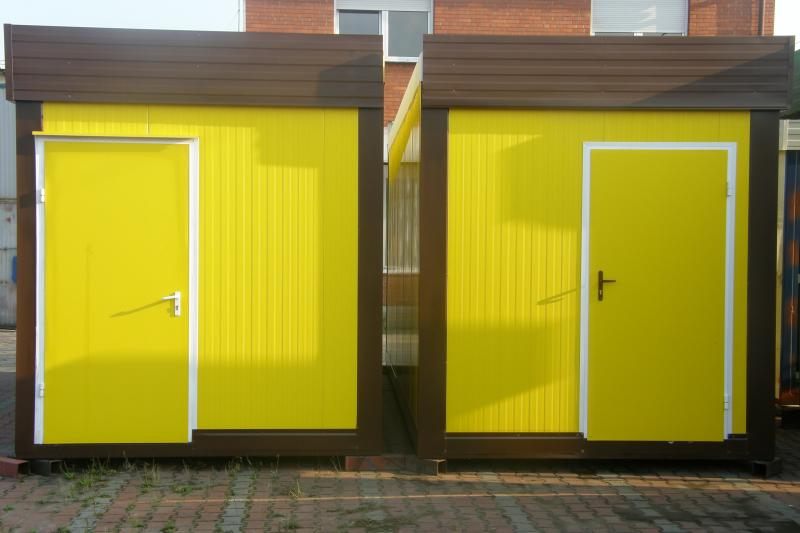

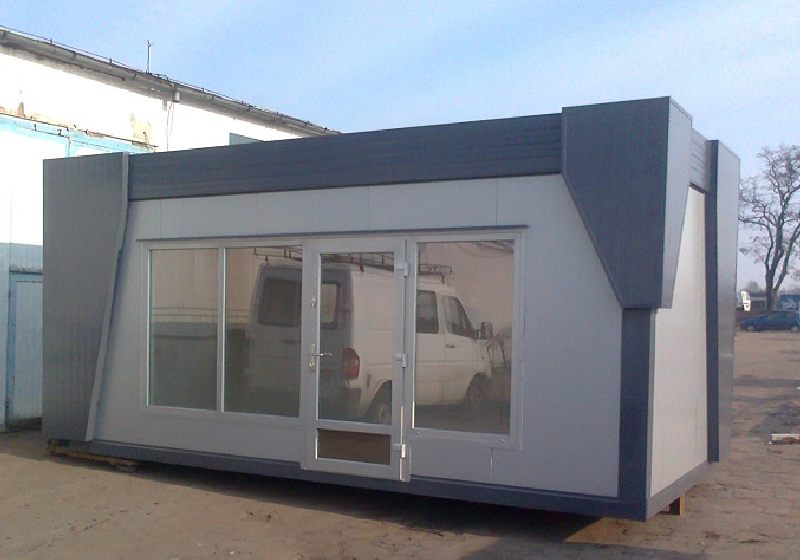

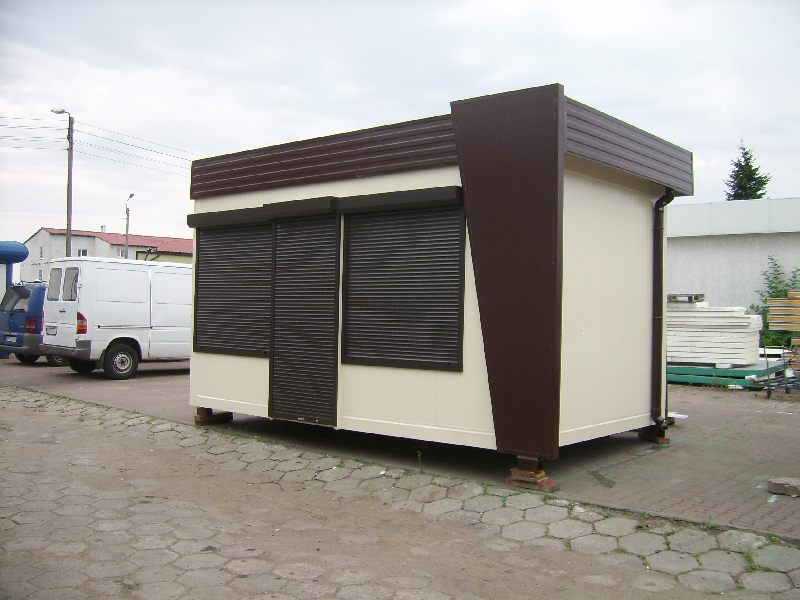

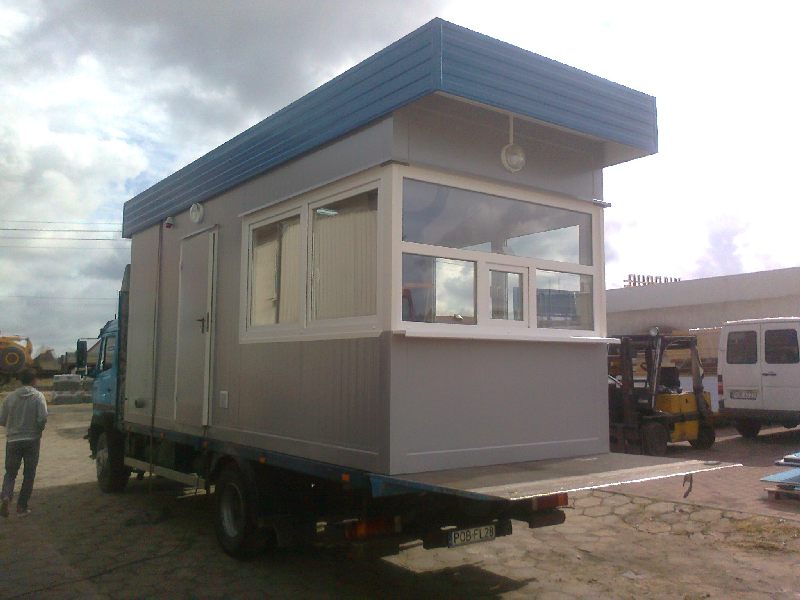

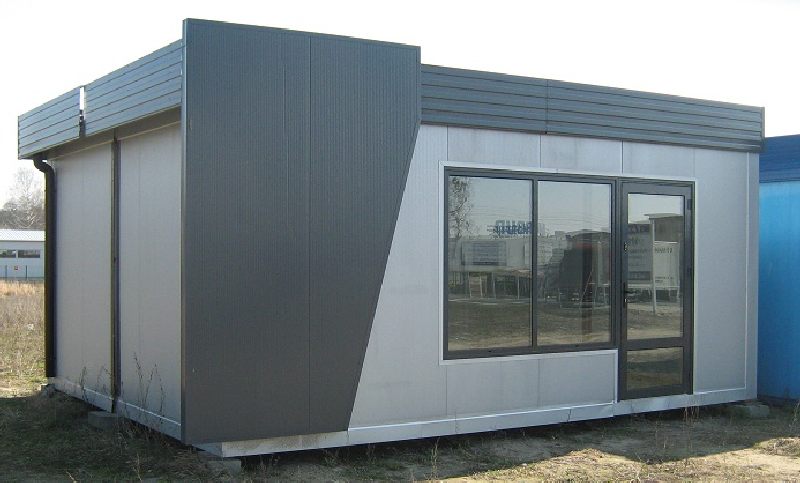

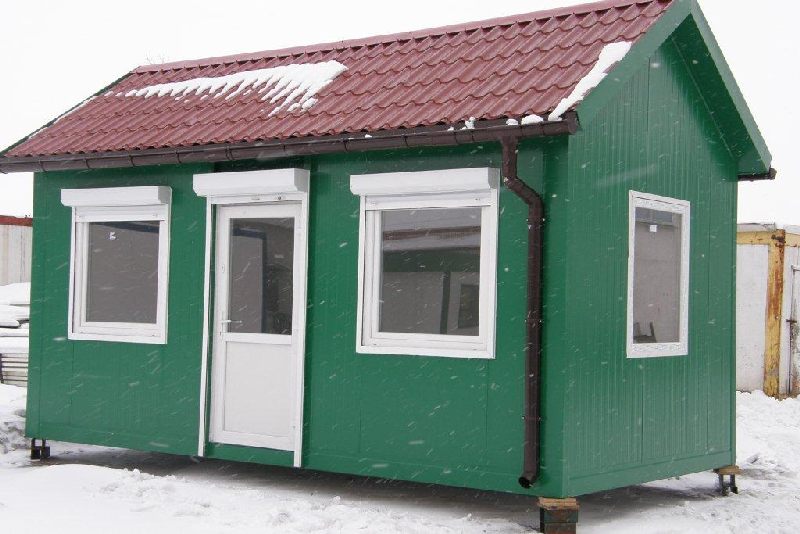

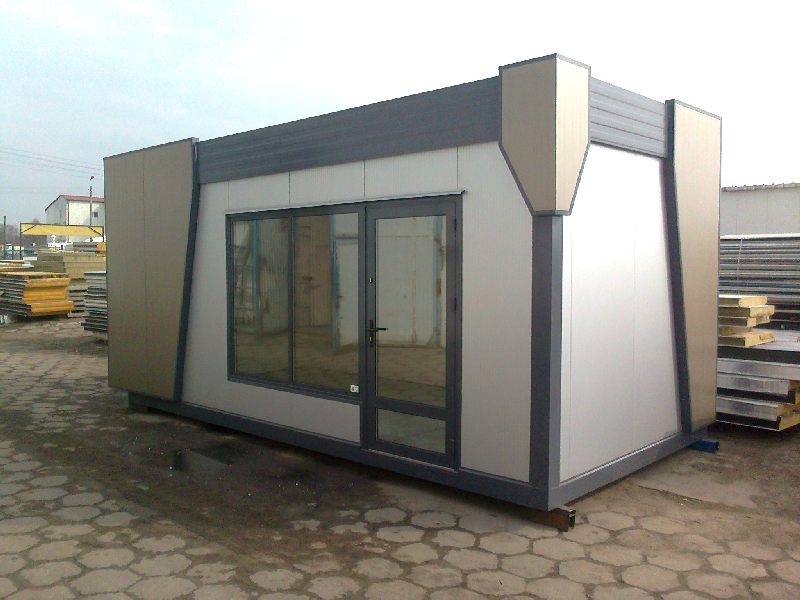

Containers are facilities of a self-supporting steel construction. They are covered with sandwich panel with cores of expanded polystyrene, polyurethane or mineral wool. Window and door framing is tailored to individual customer needs. They are supplied as ready-made objects. Only a crane is required in order to place them.

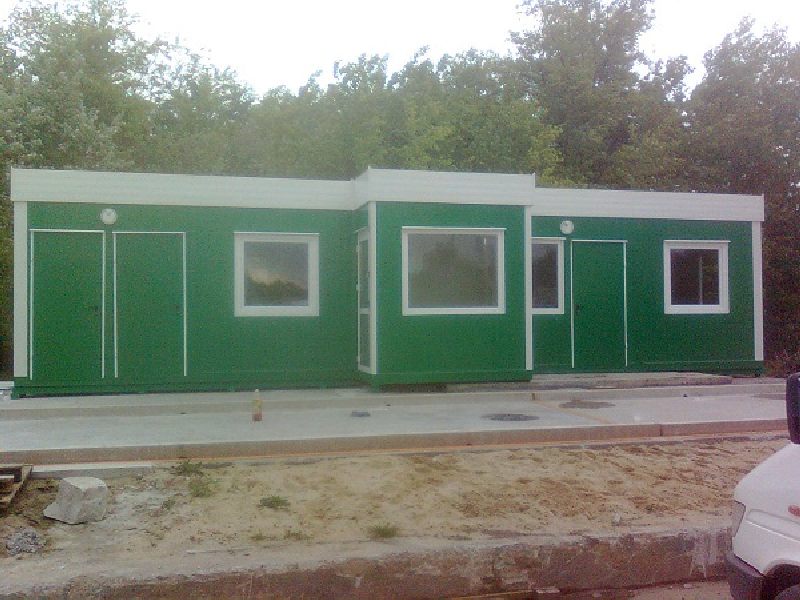

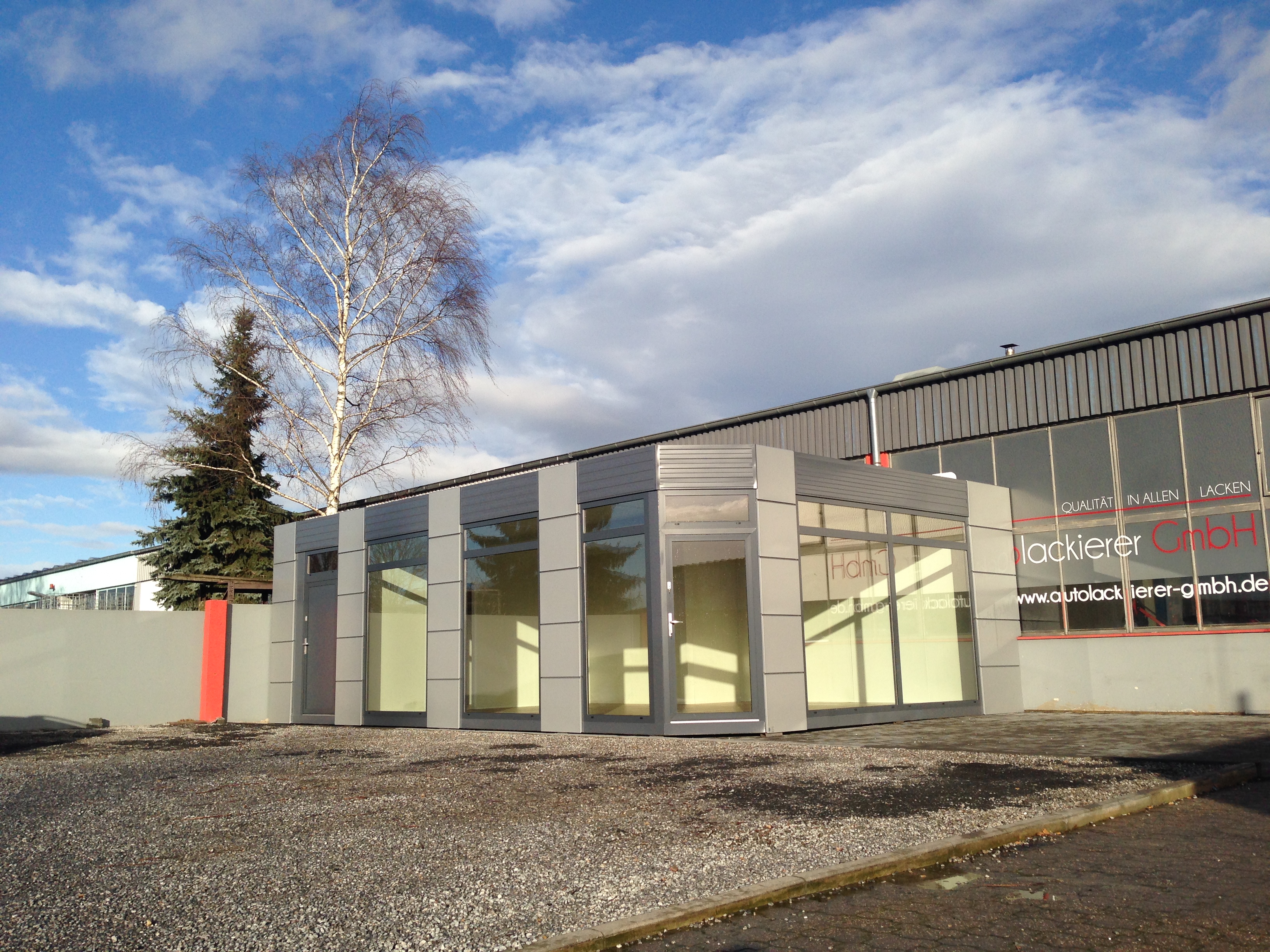

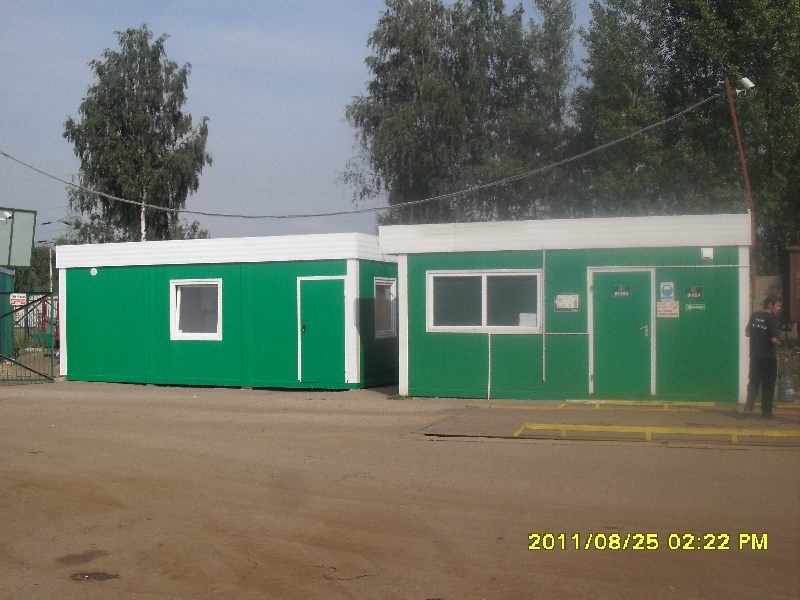

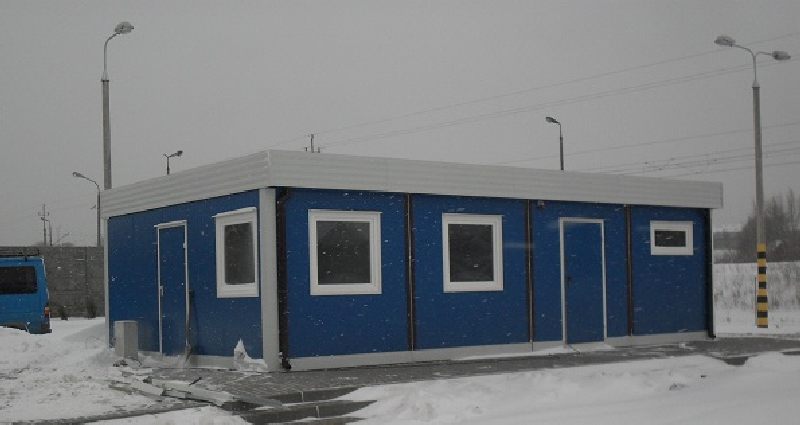

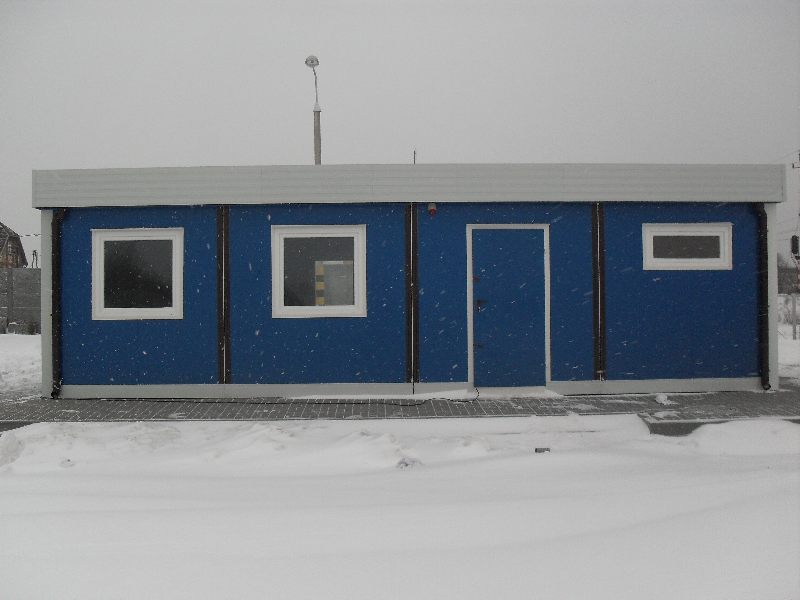

We manufacture containers of any size. However, a single module can have maximum dimensions of 3.0m x 8.0m. There is a possibility to connect the containers into a larger modular buildings.
For products made by us we are giving warranty.

Versatility needs to be included into various advantages of the containers that we manufacture.
We tailor them in agreement with the most sophisticated requirements.

Application

commercial containers
office containers
gastronomic containers
social containers
storage containers
sanitary containers
refrigerated containers

Technical description

Design

Welded steel frame which is not only made of cold-bent sections, but it is also double coated with a primer and topcoat

Floor

The underfloor heating is made of steel sections isolated from the subfloor with a steel sheet and construction membrane. The floor is covered with Oriented Strand Board and PVC flooring. Mineral wool, 100mm thick, acts as a thermal insulation layer.

Walls

By default, the roof is made of 60mm, 80mm, 100mm or 150 mm thick sandwich panel with a core of expanded polystyrene. The roof is made of cladded steel plates, 0,50mm or 0,55mm thick, galvanised and coated with polyester. There is a possibility to mount panels with a core of polyurethane foam or mineral wool
In addition, cladding cassettes, facade boards or decorative sandwich panels can be attached to the walls

Roof

By default, the roof is made of 60, 80, 100 or 150 mm thick sandwich panel with a core of expanded polystyrene. The roof is made of cladded steel plates, 0,50 or 0,55 mm thick, galvanised and coated with polyester. There is a possibility to mount panels with a core of polyurethane foam or mineral wool.
The mono-pitched roof is available with a PVC rainwater guttering and drainage solution. The roof is finished with a simple parapet wall constructed of coated in any colour steel plate.

Window and floor framing

Aluminium entrance doors are glazed or flush.
The doors to the back of the pavilions are flush, coated in steel metal and insulated.
Internal panel doors are available in two options, glaze or flush.
Windows are framed in PVC or aluminium profiles.

Additional equipment of the containers:
