General informations

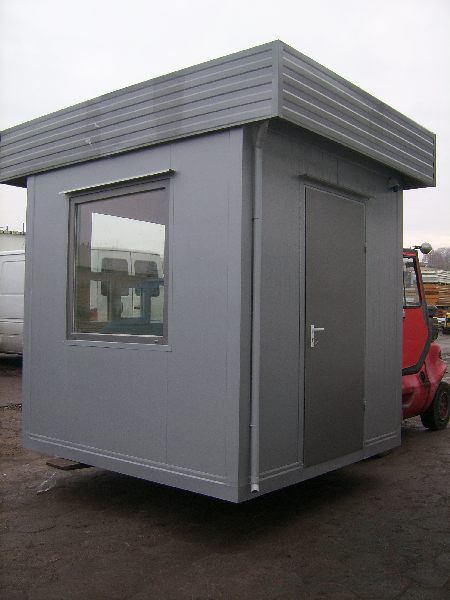

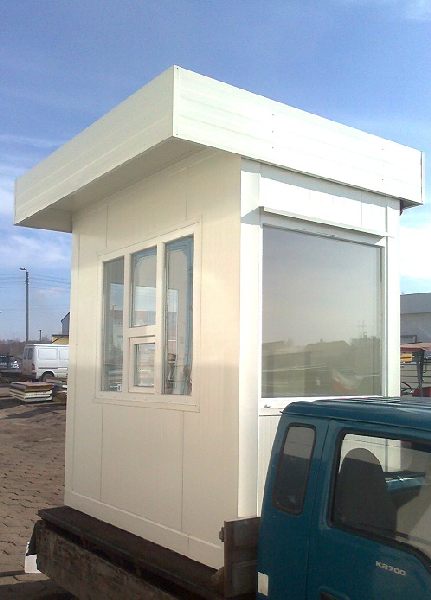

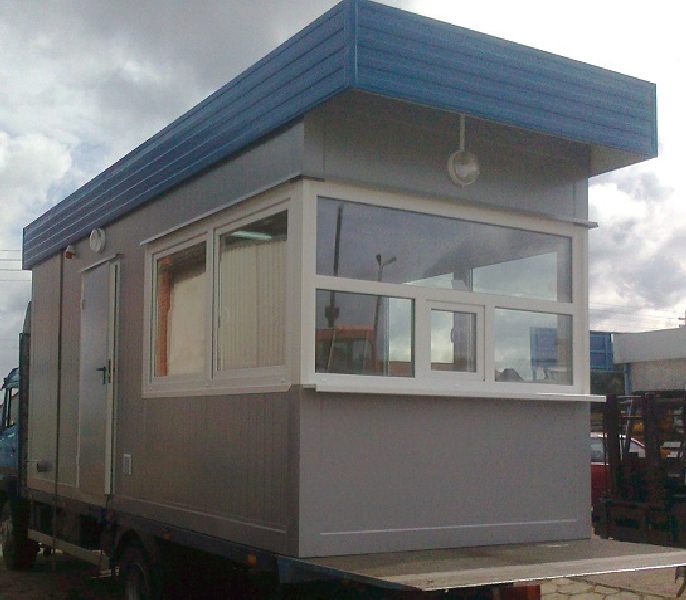

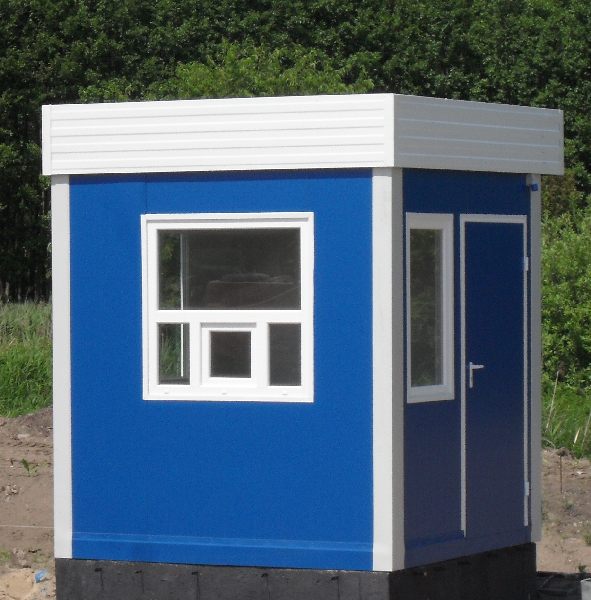

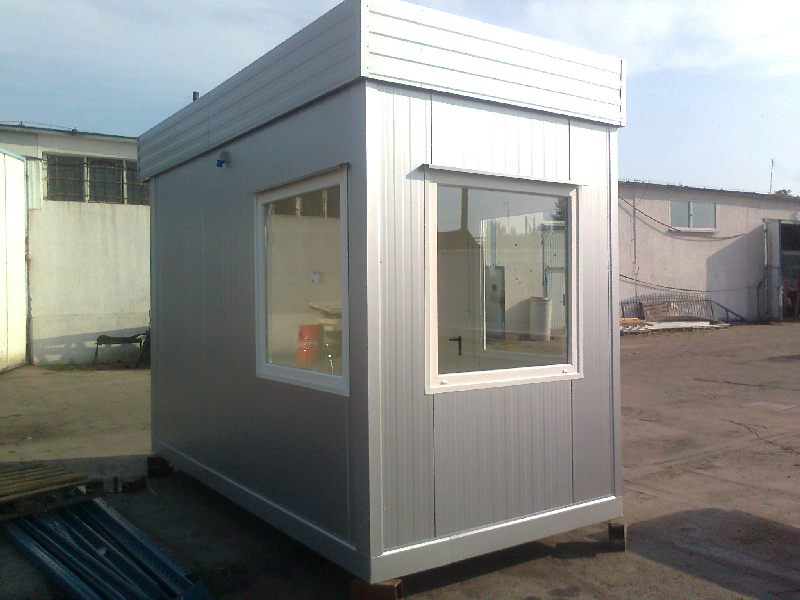

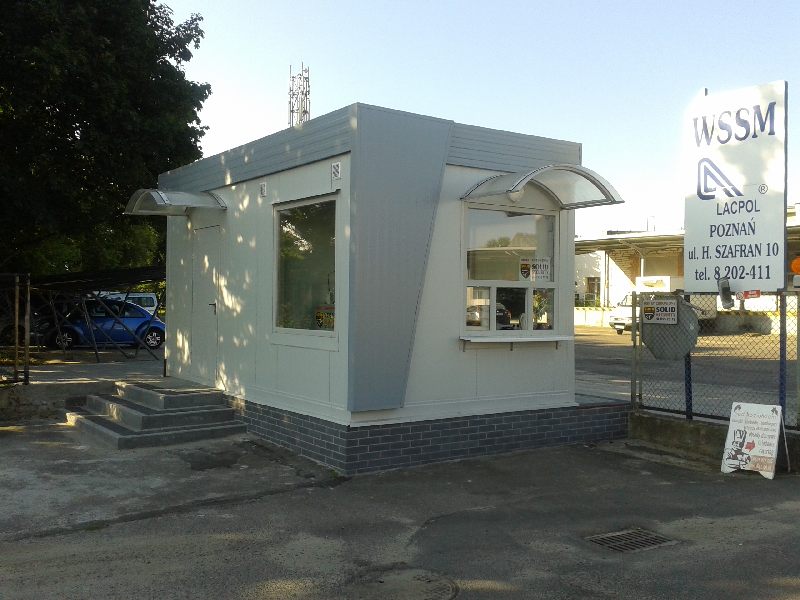

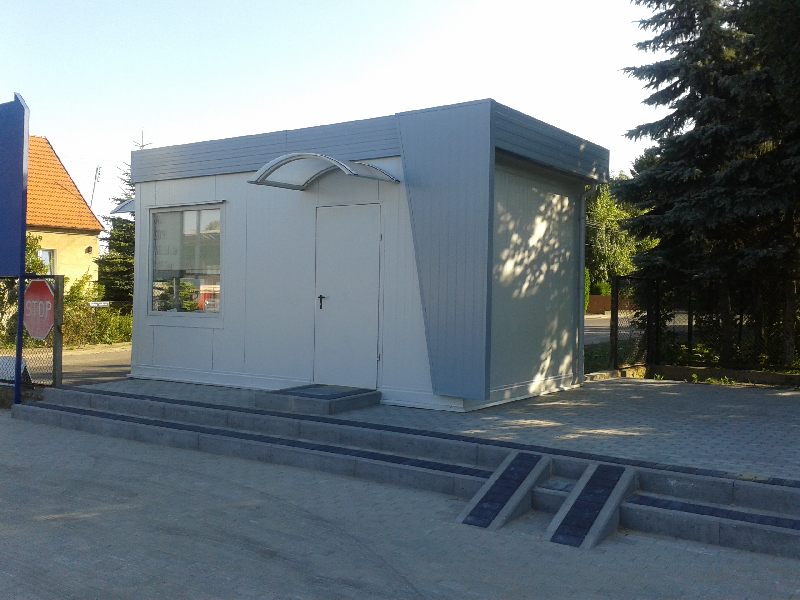

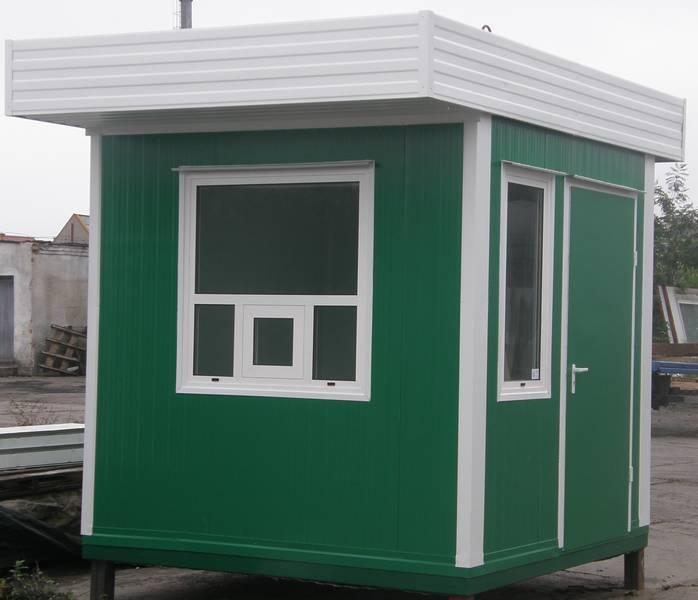

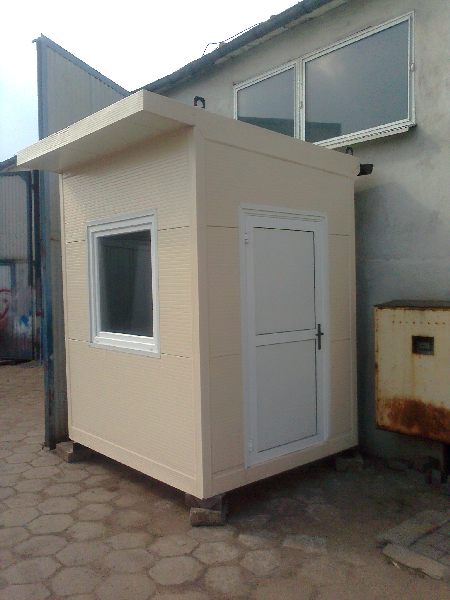

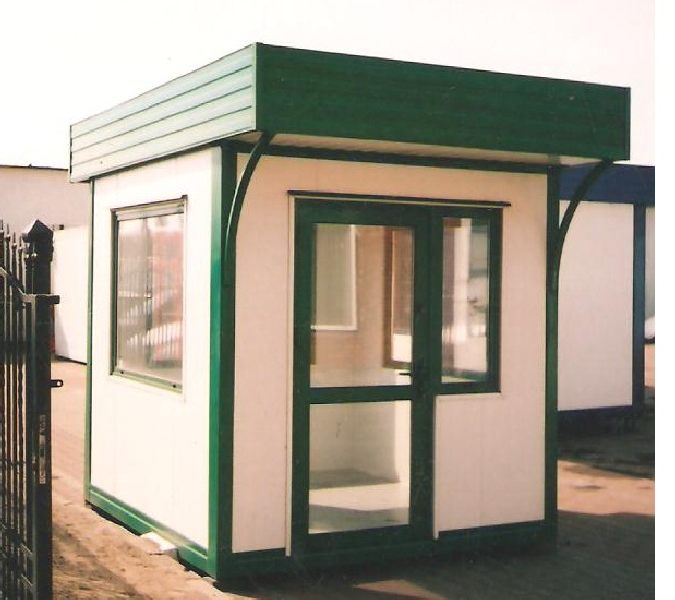

We offer guard, security or control booths in both, container and pavilion options. They can be produced in any size and provided with a wide range of equipment. These facilities are designed for the employees, who work as office or building security guards, parking attendants or for those who manage machines or technological processes.
For products made by us we are giving warranty.

Technical description

Design

Welded steel frame made of sections or cold-bent profiles, double coated with a primer and topcoat.

Floor

The underfloor heating is made of steel sections isolated from the subfloor with a steel sheet and construction membrane. The floor is covered with Oriented Strand Board and PVC flooring. 100mm thick mineral wool acts as a thermal insulation layer.

Walls

By default, the roof is made of 60mm, 80mm, 100mm or 150mm thick sandwich panel with a core of expanded polystyrene. The wall are made of cladded steel plates, 0,50mm or 0,55 mm thick, galvanised and coated with polyester. There is a possibility to mount panels with a core of polyurethane foam or mineral wool. In addition, cladding cassettes, facade boards or decorative sandwich panels can be attached to the walls.

Roof

By default, the roof is made of 60mm, 80mm, 100mm or 150mm thick sandwich panel with a core of expanded polystyrene. The roof is made of cladded steel plates, 0,50 or 0,55 mm thick, galvanised and coated with polyester. There is a possibility to mount panels with a core of polyurethane foam or mineral wool.
The mono-pitched roof is available with a PVC rainwater guttering and drainage solution. The roof is finished with a simple parapet wall constructed of coated in any colour steel plate.

Window and door framing

Aluminium entrance doors are glazed or flush.
The doors to the back of the guard booths are flush, coated in steel metal and insulated.
Internal panel doors are available in two options, glaze or flush.
Windows are framed in PVC or aluminium profiles

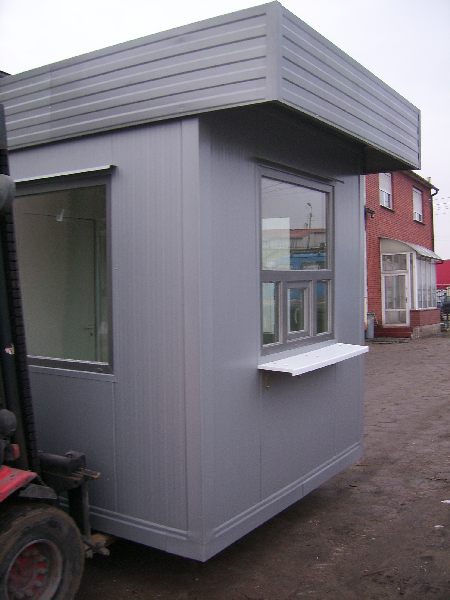

Windows in guard and security booths are provided with a pass through and PVC sill.

Additional equipment of the facilities:
